Blind+Buried Hole PCB

We mainly produce double sides PCB, multilayer circuit boards, high backplane, high frequency boards, high TG material, halogen-free material and the impedance control board with fast delivery and reliable quality. If any open inquiry, contact us by info@fmxtech.com.cn right away. We are definitely your long term and reliable PCB manufacturer partner.

Blind+Buried Hole PCB is one of the main products with good price and quality. Our company is a professional supplier(s) and manufacturers in China, with various products For sale.

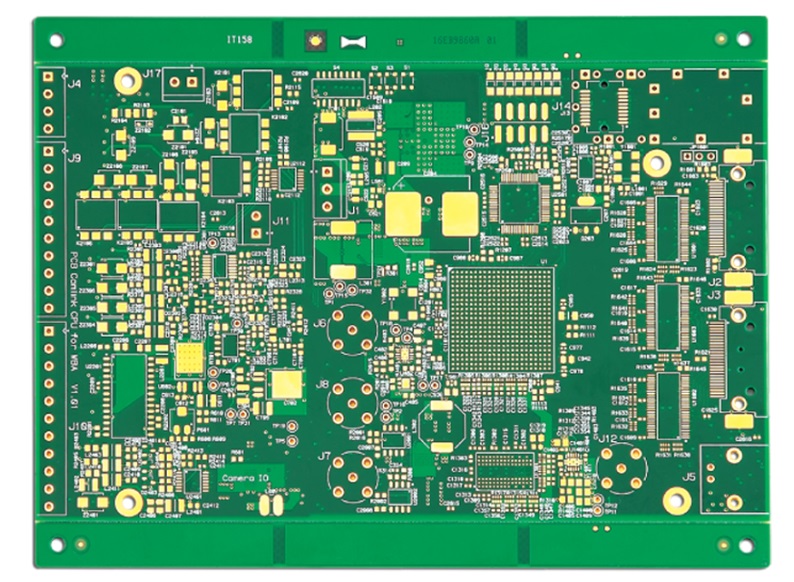

Introducing our advanced Blind+Buried Hole PCB, a cutting-edge solution for high-density and complex electronic circuit designs. This innovative PCB technology offers unparalleled flexibility and precision, catering to the evolving demands of modern electronic applications. With a focus on miniaturization and performance optimization, our Blind+Buried Hole PCB is engineered to meet the stringent requirements of diverse industries, including aerospace, telecommunications, medical devices, and automotive electronics.

The key feature of our Blind+Buried Hole PCB lies in its ability to accommodate intricate multilayer circuitry with exceptional space efficiency. By incorporating blind vias and buried vias, this PCB type enables interconnection between layers without penetrating the entire board, allowing for more compact and densely populated designs. The blind vias connect an outer layer to one or more inner layers, while buried vias establish connections exclusively between inner layers, resulting in a higher interconnect density and improved signal integrity.

Our Blind+Buried Hole PCB excels in delivering enhanced design freedom, enabling the realization of complex and high-performance electronic systems. Designers can leverage the versatility of this PCB technology to achieve finer pitch components, reduced layer counts, and increased routing density, contributing to overall miniaturization and weight reduction in electronic assemblies. Furthermore, the elimination of through-holes enhances signal integrity and minimizes the risk of signal interference, ensuring optimal performance in demanding applications.

With a focus on quality and reliability, our Blind+Buried Hole PCB undergoes rigorous manufacturing processes utilizing state-of-the-art equipment and materials. Advanced laser drilling and controlled depth drilling techniques are employed to achieve precise blind and buried vias, maintaining tight tolerances and positional accuracy. This meticulous approach results in PCBs that exhibit superior electrical characteristics, thermal management, and mechanical stability, meeting the exacting standards of modern electronic designs.

In addition to its technical prowess, our Blind+Buried Hole PCB offers compatibility with various surface finishes, solder masks, and materials to suit specific environmental and operational requirements. Whether it's for rigid, flex, or rigid-flex PCB configurations, this versatile technology empowers engineers to push the boundaries of innovation while ensuring seamless integration into their end products.

In summary, our Blind+Buried Hole PCB represents a leap forward in PCB technology, empowering designers to overcome the challenges of miniaturization, signal integrity, and interconnect complexity. With its exceptional adaptability and performance capabilities, this advanced PCB solution is poised to drive the next generation of electronic devices and systems, enabling unprecedented levels of functionality and reliability in the ever-evolving landscape of electronics engineering.
