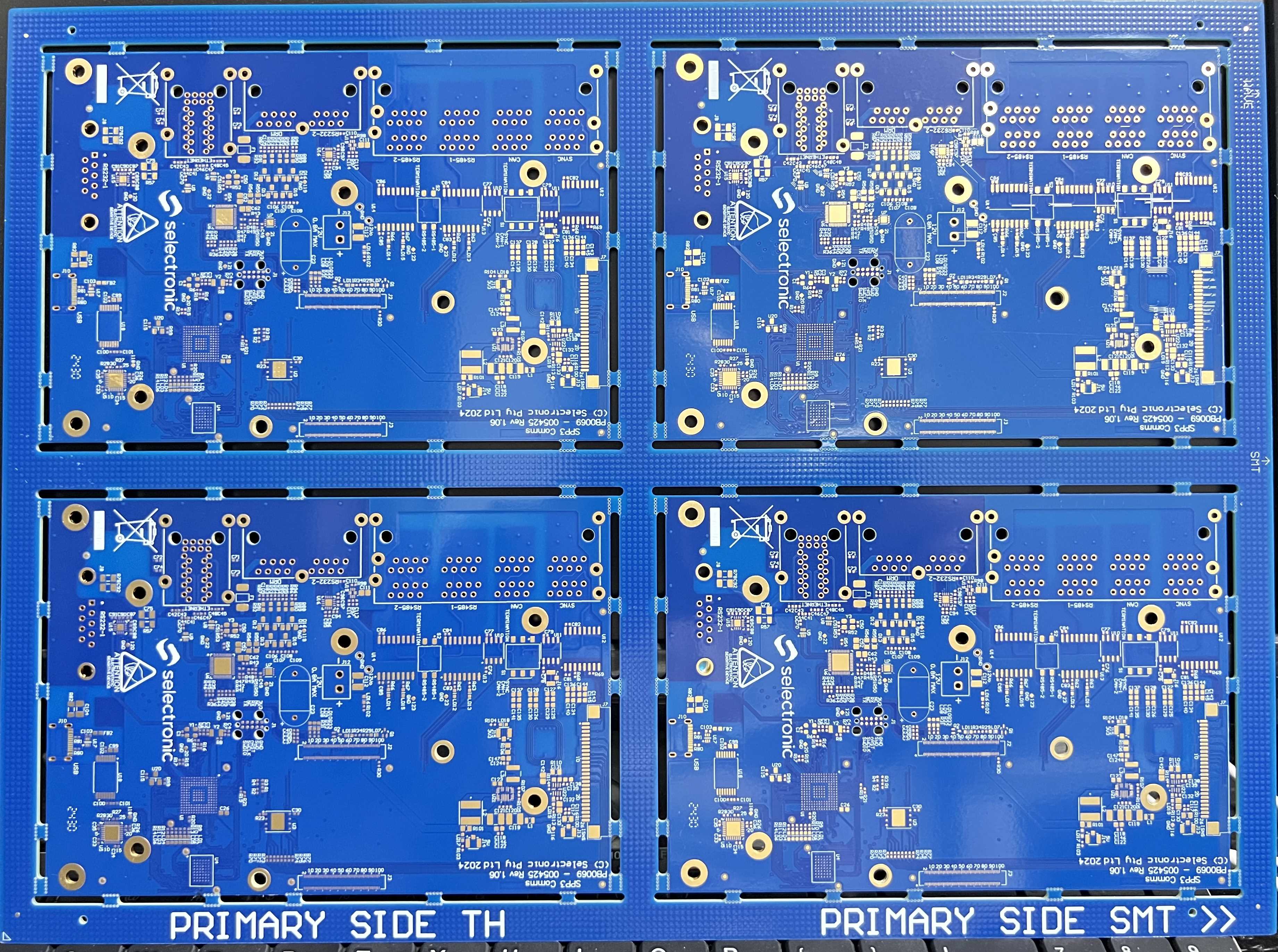

PCB Type: 8L industry control PCB
Min track/gap: 4mil/4mil
Min hole: 0.3mm
Board thickness: 1.6mm

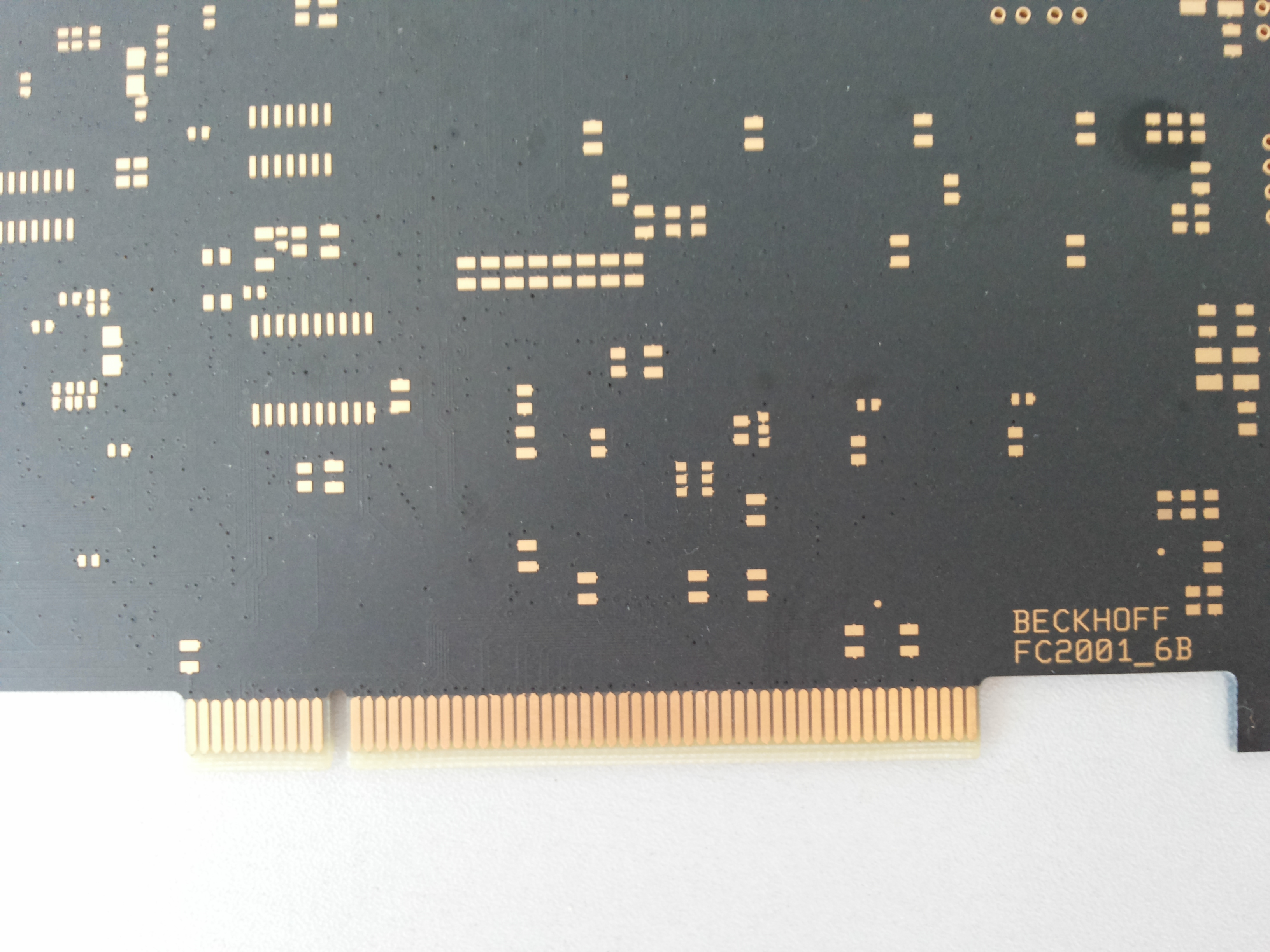

Surface Finish: ENlG+Gold Finger (Hard Gold plating)
Size:215*160mm
Copper thickness: inner 1OZ, outer 1Oz
Material: S1000-2M
Application: industry control

PCB Type: 8L Power Supply PCB
Min track/gap: 4mil/4mil
Min hole: 0.25mm
Board thickness: 1.6mm
Surface Finish: ENIG according to IPC-4552
Size:335.6*247.6mm
Copper thickness: outer 1OZ, inner: 1OZ
Material: Shengyi S1000-2M
Speciality: Epoxy Resin Filling and Capping
Application: Power Supply

PCB Type: 8L Blind+Buried Hole PCB
Min track/gap: 4mil/4mil
Min hole: 0.25mm
Board thickness: 1.6mm
Surface Finish: ENIG according to IPC-4552
Size:210*120mm
Copper thickness: outer 1OZ, inner: 1OZ
Material: ITEQ IT-180A
Application: Industry control
Speciality:  the buried holes inside

PCB Type: 20L industry control PCB
Min track/gap: 3.5mil/3.5mil
Min hole: 0.3mm
Board thickness: 2.4mm
Surface Finish: ENlG according to lPC-4552
Size:315*225mm
Copper thickness: inner 1OZ, outer 1Oz
Material: TUC TU-768
Application: industry control

PCB Type: 8L industry control PCB
Min track/gap: 4mil/4mil
Min hole: 0.25mm
Board thickness: 1.6mm
Surface Finish: ENlG according to lPC-4552
Size:315*176mm
Copper thickness: inner 1OZ, outer 1Oz
Material: Shengyi material, S1000-2M
Application: industry control
